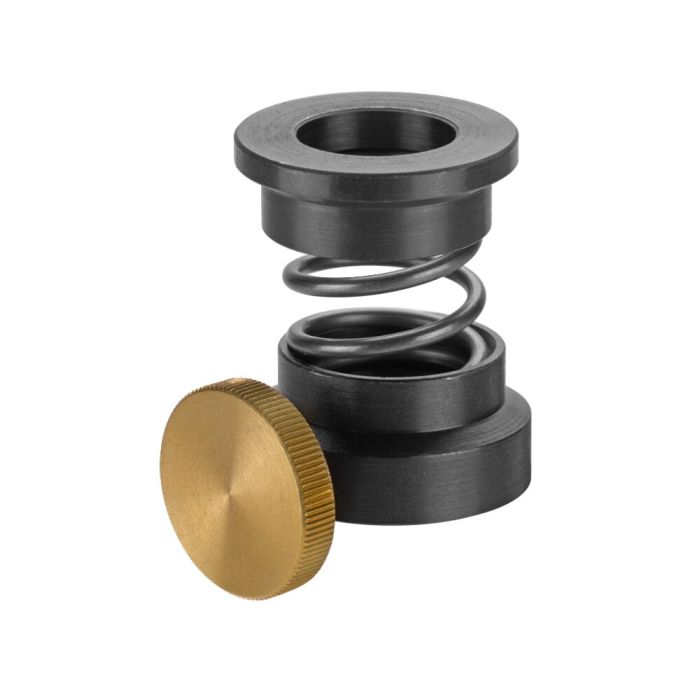

Spring type clamp support
For clamping screw M16-M18, ⌀ 32 mm, height 26 mm, travel of spring 12 mm
Order no.
75978
The spring type clamp support holds the clamp while the work piece is removed and loaded, ensuring fast and safe clamping sequence.
| Order no. | 75978 |
|---|---|
| Product type | Clamp support |
