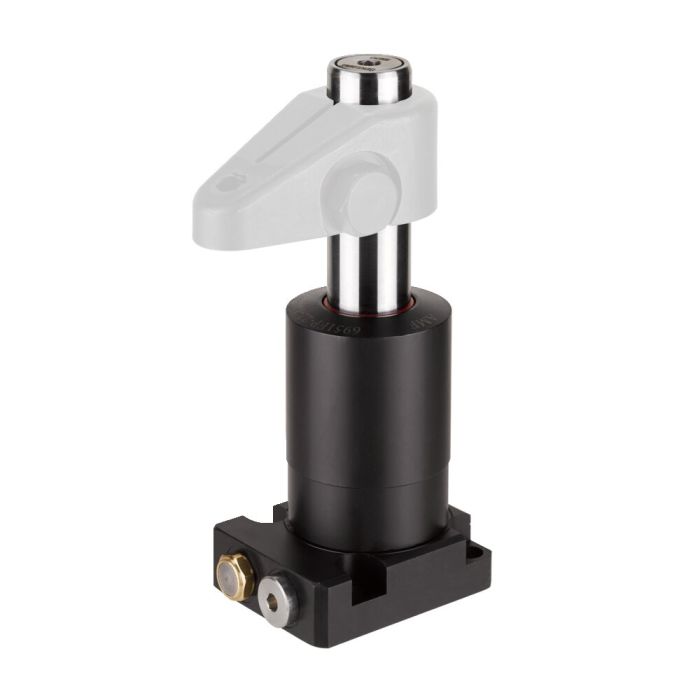

Swing clamp, base-flange-mounting, precision design
Max. clamping force 22 kN, max. stroke 28 mm, single acting, left-pivoting
Order no.
327288
Design:
Tempered and blued steel.
Application:
For swing clamps
order no. 69146 for sizes 6951xx-22-xx, 6941KP-11-xx
order no. 60848 for sizes 6951xx-33-xx
Note:
Clamping pressure, flow volume and clamping arm weight must be observed. Special versions available on request.
| Order no. | 327288 |
|---|---|
| Max. clamping force [kN] | 22 |
| Type of actuation | Single acting |
| Stroke [mm] | 28 |
| Mounting | Base flange |
| Swing direction | Left swinging |
