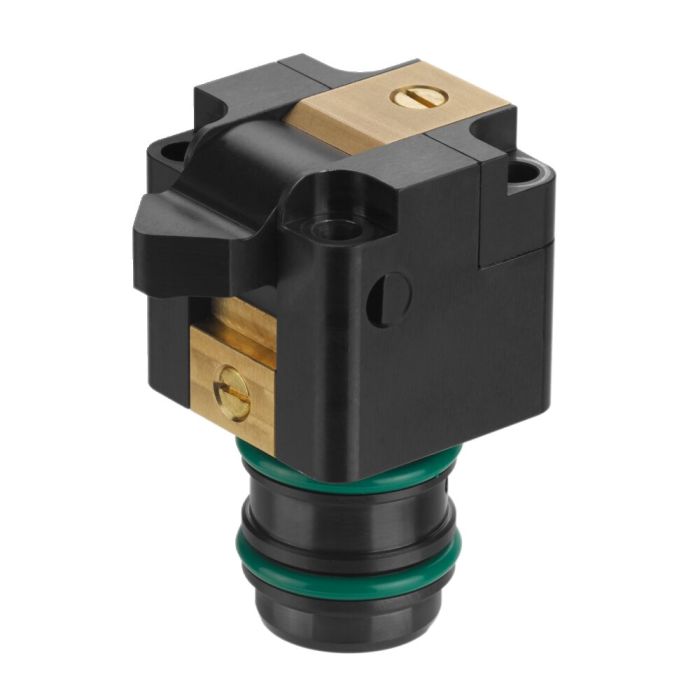

Vertical clamp MINI

Max. operating pressure 250 bar, max. piston force 13,25 kN, double acting

Order no.

563316

Order no.	Article no.	Clamping force F1 at 100 bar [kN]	Clamping force F1 at 250 bar* [kN]	Piston force F5 at 100 bar [kN]	Vol. Sp [cm³]	Vol. Lo [cm³]	Eff. piston area Sp [cm²]	Md [Nm]	Q max. ** [l/min]	Weight [g]
562236	6958CK-16	1,36	3,4	2,54	2,75	1,53	2,545	5,8	0,5	333
563316	6958CK-20	2,90	6,9	5,31	6,89	4,60	5,309	9,1	0,5	580

Design:
Heat treated and burnished steel.

Application:
For MINI vertical clamp 6958CK.

Note:
Clamping pressure, leverage, flow volume and clamp arm weight must always be observed.
