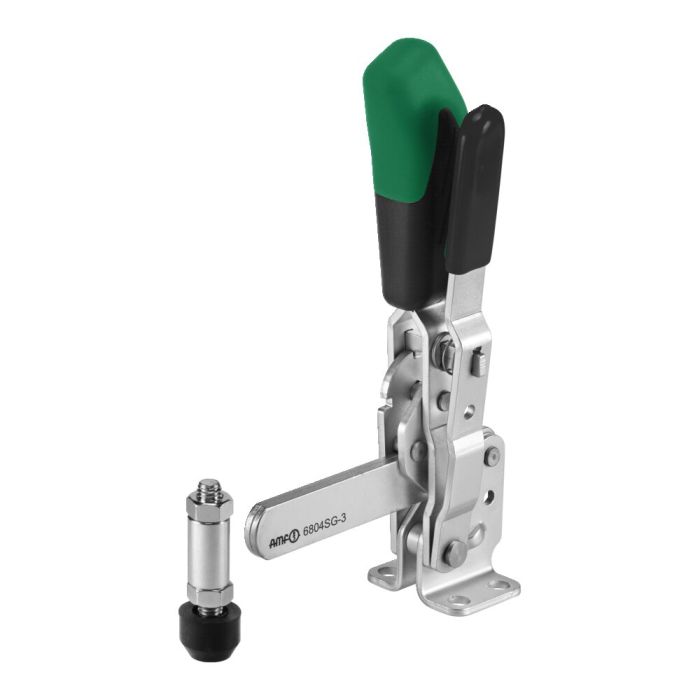

Vertical toggle clamp with green handle and safety latch
With solid arm and horizontal base, size 3, max. clamping force 2,5 kN
Order no.
557578
* The opening angle can be changed by pressing in a stop pin.
| Order no. | 557578 |
|---|---|
| Product type | Vertical toggle clamp |
| Max. clamping force [kN] | 2.5 |
| Größe Schnellspanner | 3 |
| Material | Steel, galvanized |
| Foot alignment | Horizontal |
| Handle color | Green |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
