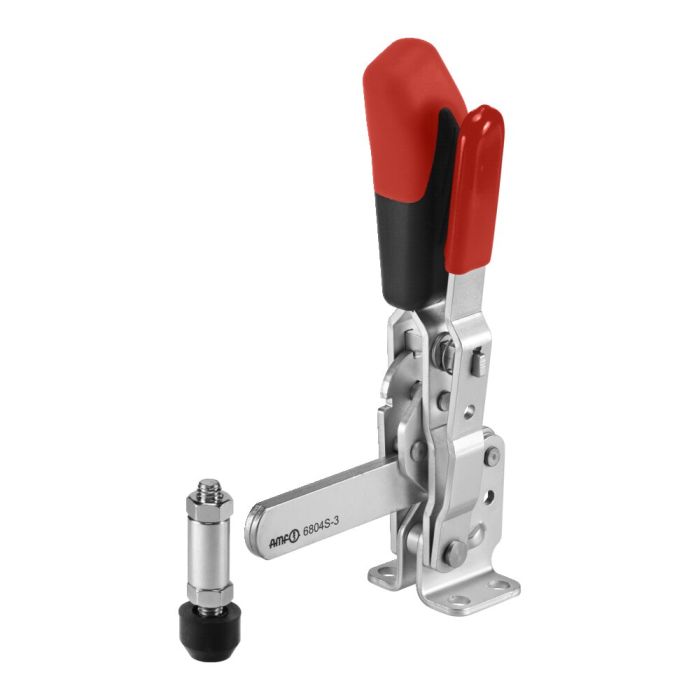

Vertical toggle clamp with red handle and safety latch
With solid arm and horizontal base, size 4, max. clamping force 3 kN
Order no.
90407
* The opening angle can be changed by pressing in a stop pin.
| Order no. | 90407 |
|---|---|
| Product type | Vertical toggle clamp |
| Max. clamping force [kN] | 3 |
| Größe Schnellspanner | 4 |
| Material | Steel, galvanized |
| Foot alignment | Horizontal |
| Handle color | Red |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Adapter plate, angular Nr. 564129 For fastening on perforated tables, size 1, flat-head screw DIN 7991 M8x35, measures 93x62 mm
