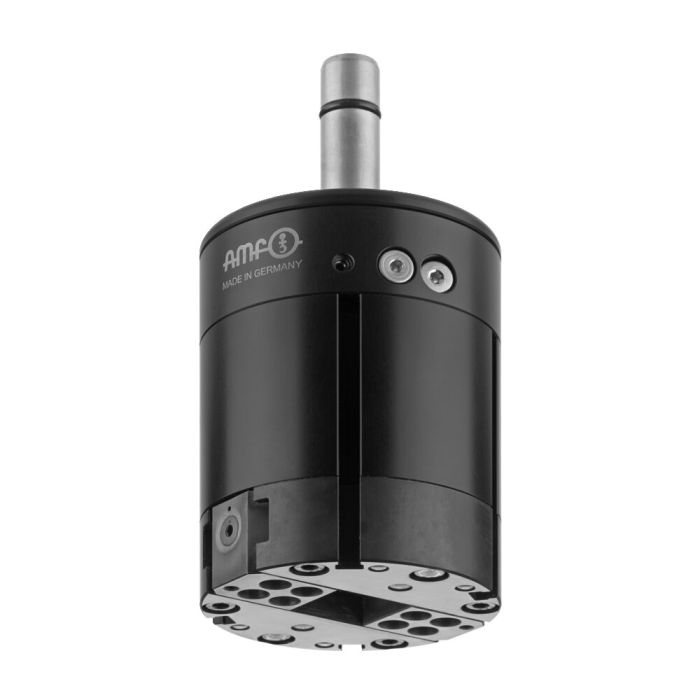

Gripper without compensation unit, hydraulic

Application:
The gripper achieves a fully automatic workpiece change during the machining process on a machine tool. It is changed from the tool magazine of the milling machine and enables workpiece handling between the part storage and the clamping device. It is actuated via cooling lubricant air, which is routed through the machine spindle. The gripper closes hydraulically and opening takes place by means of spring force.

Features:
Depending on the machine used and the operating pressure of the cooling lubricant, there are three pre-configured grippers available. Please note the minimum and maximum operating pressure.

Note:
- Max. permitted speed: 20 [rpm]
- Suitable for Weldon seat and hydraulic expansion chucks
- Designed for ambient temperatures from 0°C to 60°C
- Transportation of workpieces up to a max. of 8 kg
- The standard supply includes three replacement seals
- Available in two designs for workpiece sizes up to a max. of 50 mm or 70 mm

Advantage:
- The gripping force can easily be adjusted by means of throttles and thereby adapted to the relevant requirements of the workpieces
- Easily exchangeable gripper inserts for handling various workpiece geometrics
- Easy implementation of unmanned shifts, which means greater machine utilisation and more flexibility
- Tremendous reduction of set-up times for smaller to medium-sizes batches
