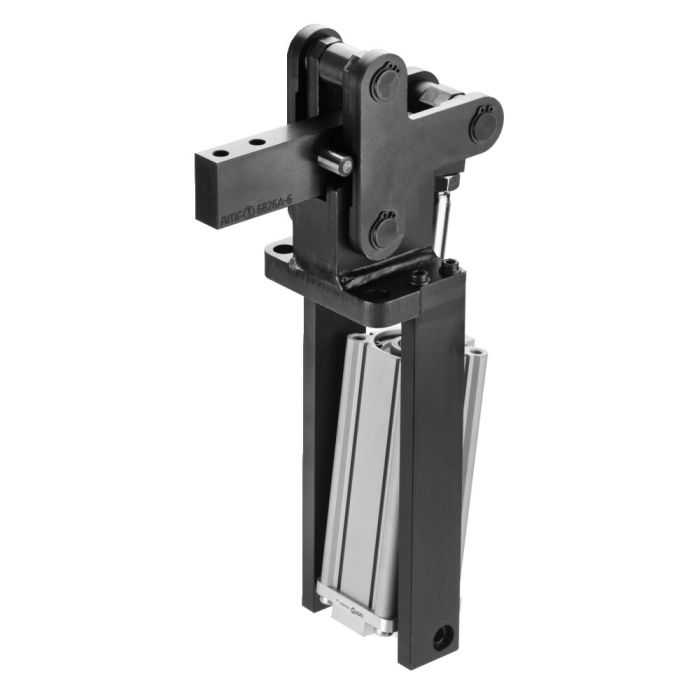

Heavy pneumatic toggle clamp
Size 6, max. clamping force 18 kN
Order no.
559773
Application:
These pneumatic toggle clamps are of machine tool quality and can be installed in machines such as material handling lines and special machines. Opening and clamping position of the clamp can be controlled electrically and can be intergrated into automated manufacturing.
Note:
Suitable proximity switches for end-position monitoring are available using order no. 392241.
Design: PUR cable 0.3 m with M8 plug connection and rotating knurled nuts.
Switching function: NOC.
Output: PNP.
F3 or. F4 = max. achievable clamping force at 6 bar.
Vn = air consumption per double stroke in dm³ at 6 bar.
| Order no. | 559773 |
|---|---|
| Product type | Vertical toggle clamp |
| Max. clamping force [kN] | 18 |
| Größe Schnellspanner | 6 |
| Material | Steel, burnished |
| Special features | Heavy-duty design |
