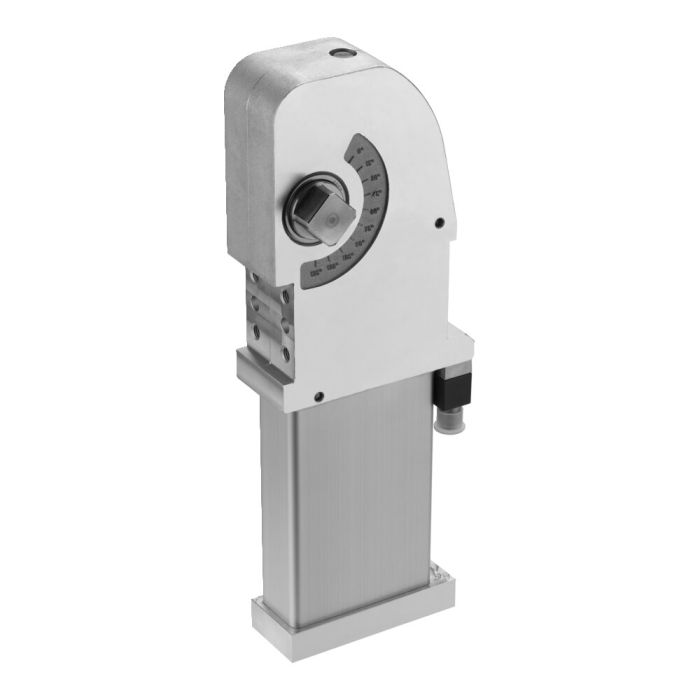

Heavy pneumatic toggle clamp
Size 63, clamping moment at 5 bar 380 Nm, max. holding moment 1500 Nm
Order no.
565866
Application:
These pneumatic clamps are suitable for use in material handling lines and special machines. Opening and clamping position of the clamp can be controlled electrically, allowing integration into automated manufacturing processes.
* Tolerance for peg holes ±0.02 mm; for threaded holes ±0.1 mm.
| Order no. | 565866 |
|---|---|
| Product type | Vertical toggle clamp |
| Größe Schnellspanner | 63 |
| Material | Aluminium |
| Special features | Heavy-duty design |
