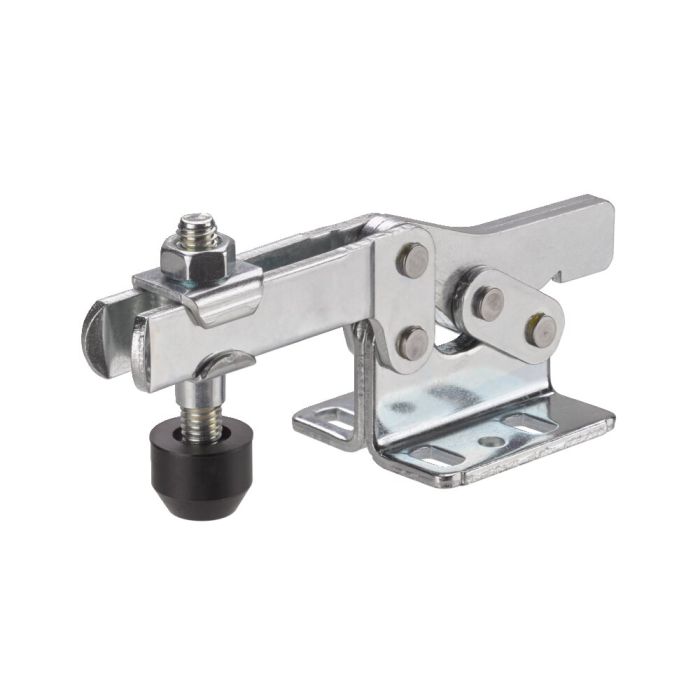

Horizontal acting toggle clamp
For removable handle, size 4, max. clamping force 3 kN
Order no.
94268
| Order no. | 94268 |
|---|---|
| Produkttyp | Horizontal toggle clamp |
| max. Spannkraft [kN] | 3 |
| Größe Schnellspanner | 4 |
| Material | Steel, galvanized |
| Fußausrichtung | Horizontal |
| Besondere Merkmale | Removable handle |
| Weight [g] | 608 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Adapter plate, angular Nr. 564129 For fastening on perforated tables, size 1, flat-head screw DIN 7991 M8x35, measures 93x62 mm
