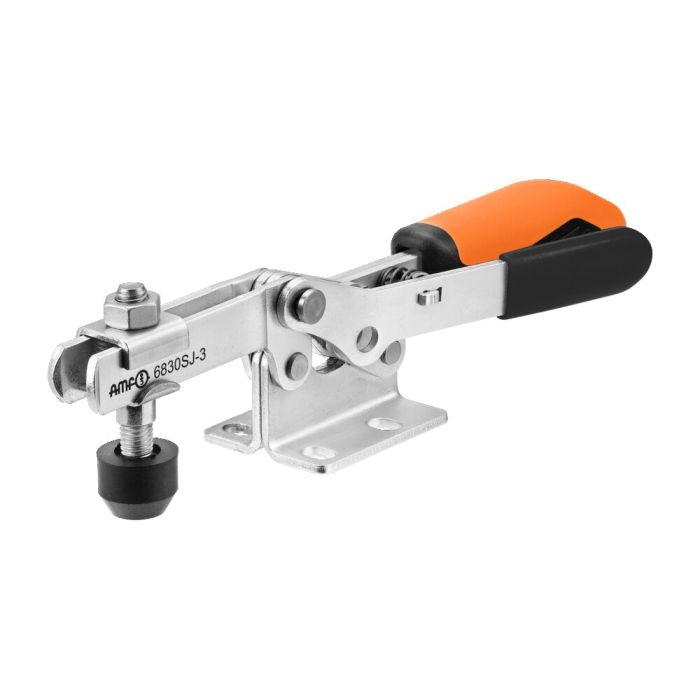

Horizontal toggle clamp with orange handle and safety latch
With open clamping arm and horizontal base, size 3, max. clamping force 2,5 kN
Order no.
557427
Note:
For suitable sensor monitor for size 3 see no. 6897S.
| Order no. | 557427 |
|---|---|
| Product type | Horizontal toggle clamp |
| Max. clamping force [kN] | 2.5 |
| Größe Schnellspanner | 3 |
| Material | Steel, galvanized |
| Foot alignment | Horizontal |
| Handle color | Orange |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
