Magnetic clamping plate for milling - Eco Line
Design:

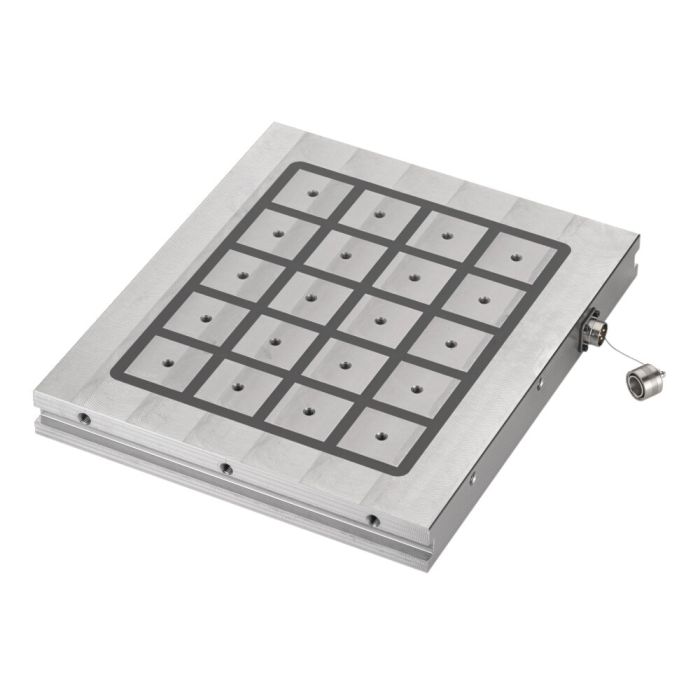

Magnetic clamping plate with square pole technology in monoblock design.
For positioning, clamping and machining magnetisable materials.
Features:
This special and high-quality design enables reaching of a very high holding force.
The maximum specified holding force is effective when all poles are occupied.
In case of possible damage, the surface can be reworked up to 4 mm to restore the original surface quality.
The magnetic clamping plates have a height tolerance of + / - 0.1 mm in the delivered condition.
The plug contact for the control unit is a bayonet plug IP 65 incl. protective cover. The optimal holding force is achieved with a workpiece or material thickness greater than 12 mm.
A clamping slot is also available on both sides of the faces for fastening to the machine table. Likewise, fastening bores can be made in the magnetic clamping plates. A bore plan from AMF must be requested for this.
Advantage:
- Very low installation height
- Environmentally friendly clamping technology: power is only needed for clamping and unclamping
- Maximum safety: holding force remains in place even in a power failure
- Maximum holding force: through the use of the latest magnetic materials
- Water-resistant plug IP 65
| Order no. | 559718 |
|---|---|
| Product line | Eco Line |
| Length [mm] | 580 |
| Width [mm] | 390 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
- Hand-held controller for magnetic clamping technology incl. holding force regulation Nr. 562876 Reaction to all circumstances using the holding force regulation
- Magnetic clamping plate for milling - Premium Line Nr. 559634 490 x 295 mm, holding force, max. 96 kN
