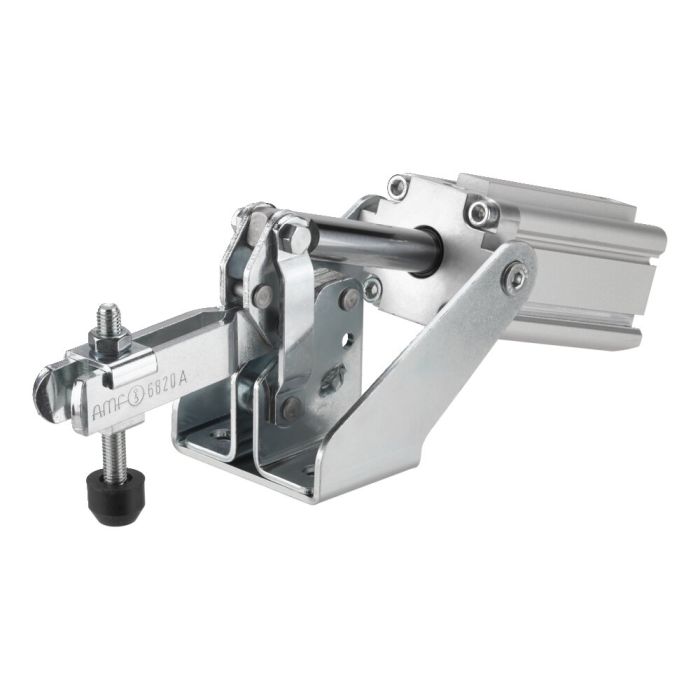

Pneumatic clamp
Size 4, max. clamping force 3 kN
Order no.
555064
Note:
Suitable proximity switches for end-position monitoring are available using order no. 392241. 0.3 m PUR cable with M8 connector and rotatable knurled nuts.
Switching function: NOC. Output: PNP.
F3 or. F4 = max. achievable clamping force at 6 bar.
Vn = air consumption per double stroke in dm³ at 6 bar.
| Order no. | 555064 |
|---|---|
| Product type | Vertical toggle clamp |
| Max. clamping force [kN] | 3 |
| Größe Schnellspanner | 4 |
| Material | Steel, galvanized |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
