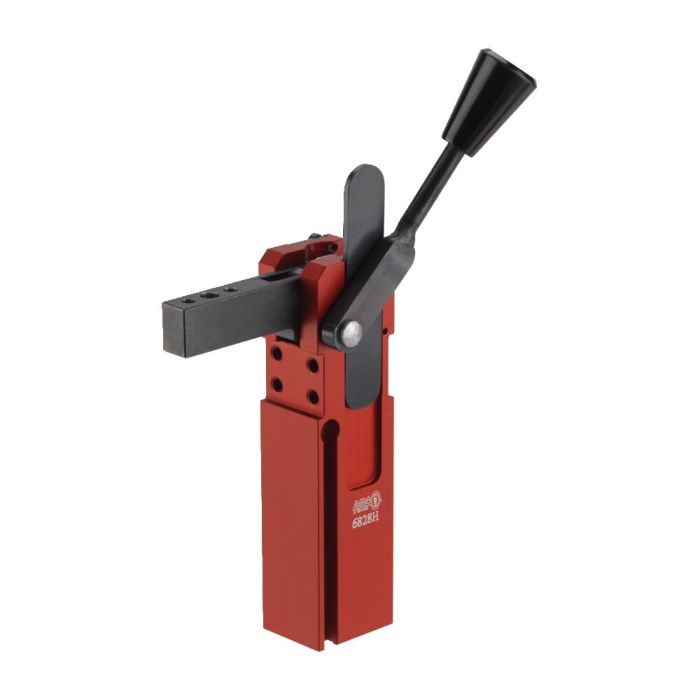

Pneumatic clamp with lever
Size 16, clamping moment at 5 bar 8 Nm, max. holding moment 25 Nm, lever right
Order no.
555083
Note:
Suitable proximity switches for end-position monitoring are available using order no. 392241.
0.3 m PUR cable with M8 connector and rotatable knurled nuts.
Switching function: NOC. Output: PNP.
| Order no. | 555083 |
|---|---|
| Product type | Vertical toggle clamp |
| Größe Schnellspanner | 16 |
| Material | Aluminium, red anodised |
| Special features | Lever |
