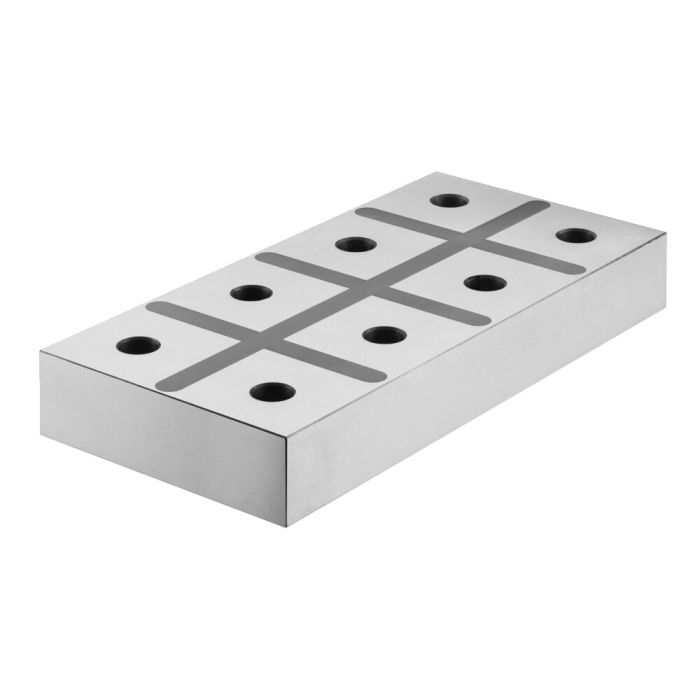

Pole extension, multiple, fixed
Number of poles 14 (110 x 410 mm)
Order no.
565982
Application:
Fixed pole extensions with pole division for multiple poles.
The surface can be worked on as desired; for example, the negative contour of the workpiece to be processed can bee brought in.
Features:
The pole extensions are designed for optimum magnetic flux.
The M8 fastening bolts are supplied as standard.
Advantage:
- Easy and fast installation
- Optimal force flow of the magnetic field lines
| Order no. | 565982 |
|---|---|
| Length [mm] | 110 |
| Width [mm] | 410 |
