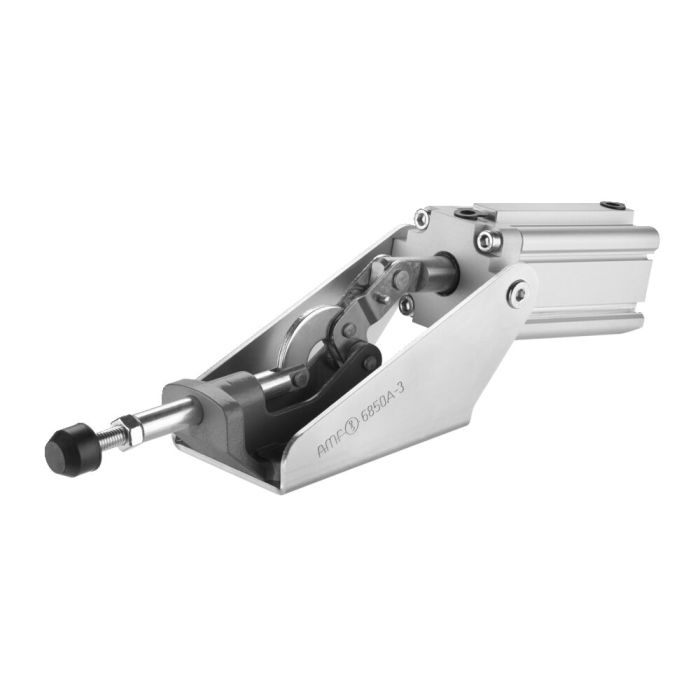

Push type pneumatic toggle clamp
Size 5, max. clamping force 10 kN
Order no.
560008
Note:
Sizes 5 and 7 are not to design, and have long consoles.
Suitable proximity switches for end-position monitoring are available using order no. 392241.
0.3 m PUR cable with M8 connector and rotatable knurled nuts.
Switching function: NOC. Output: PNP.
F3 = maximum clamping force at 6 bar.
Vn = Air consumption per double stroke in dm³ at 6 bar.
| Order no. | 560008 |
|---|---|
| Product type | Push-pull type toggle clamp |
| Max. clamping force [kN] | 10 |
| Größe Schnellspanner | 5 |
| Material | Steel, galvanized |
