Single clamping bracket
Hydraulic unlocking, for clamping on KH10.2 clamping stations, height 150 mm
Order no.
428060
Design:

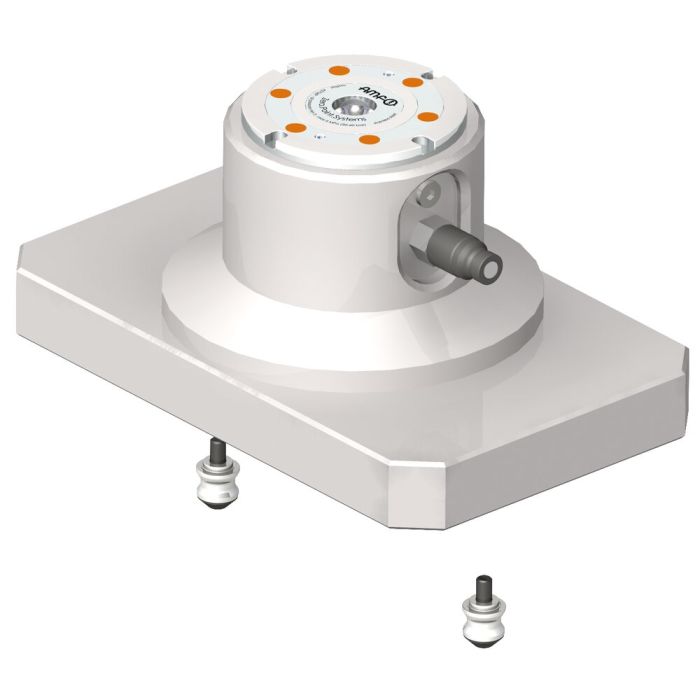

Hydraulic clamping bracket for set-up-time-optimised clamping on KH10.2 clamping stations. Installation clamping module KH10.2 with quadruple indexing. Pull-studs installed underneath.
The pitch spacing is 200 mm. The quick-coupling plug is pre-mounted, and the integrated blow-out function can be individually connected.
Note:
* Please observe the installation instructions.
| Order no. | 428060 |
|---|---|
| Product type | Clamping stations |
| Operating mode | Hydraulic |
| Size clamping module | 10 |
| Holding force [kN] | 25 |
| Pull-in/locking force [kN] | 10 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Pull-stud size 10 for M10 engagement screw Nr. 554936 For clamping modules size 10, zero point pull-stud
Similar products
- Single clamping bracket Nr. 428128 Hydraulic unlocking, for clamping on KH10.2 clamping stations, height 150 mm
- 2-point clamping bracket Nr. 427864 Hydraulic unlocking, for clamping on KH10.2 clamping stations, height 150 mm
- 2-point clamping bracket Nr. 427666 Hydraulic unlocking, for clamping on KH10.2 clamping stations, height 70 mm
