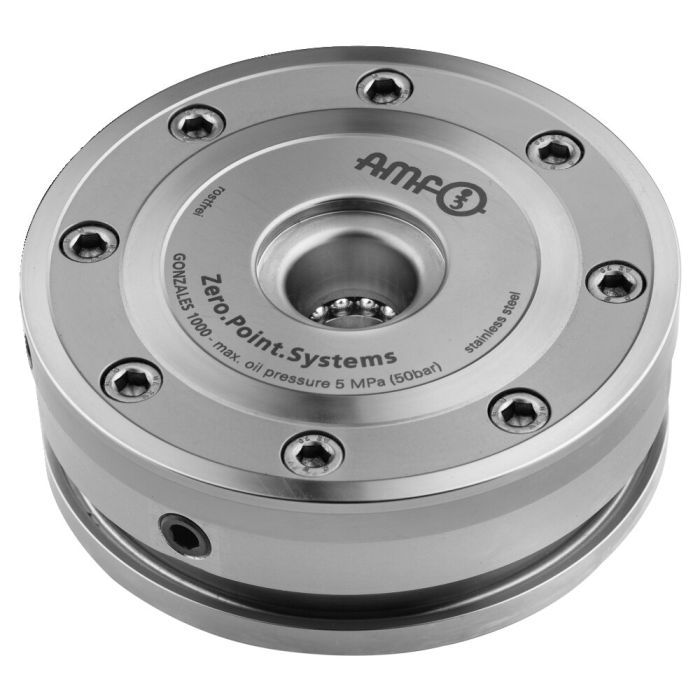

Suface-mounted clamping module “Gonzales”

Application:
Zero-point clamping system in combination with hook clamping flange 63707BG for set-up-time-optimised clamping during cutting and non-cutting machining.

Note:
Use "Gonzales" modules exclusively with "Gonzales" modules in one clamping. When changing systems, observe the following: Unlike Speedy 1000/2000 and DockLock 1000, "Gonzales"modules require an unclamping pressure of min. 50 bar / max. 60 bar. The surface-mounted clamping module is opened hydraulically (1) and mechanically locked through spring force. Subsequent uncoupling of the pressure lines is possible at all times (module is tensioned pressure-free).
The clamping module has one connection: 1x hydr. opening (1).

* Please observe the installation instructions.

On request:
- Installation diagrams
