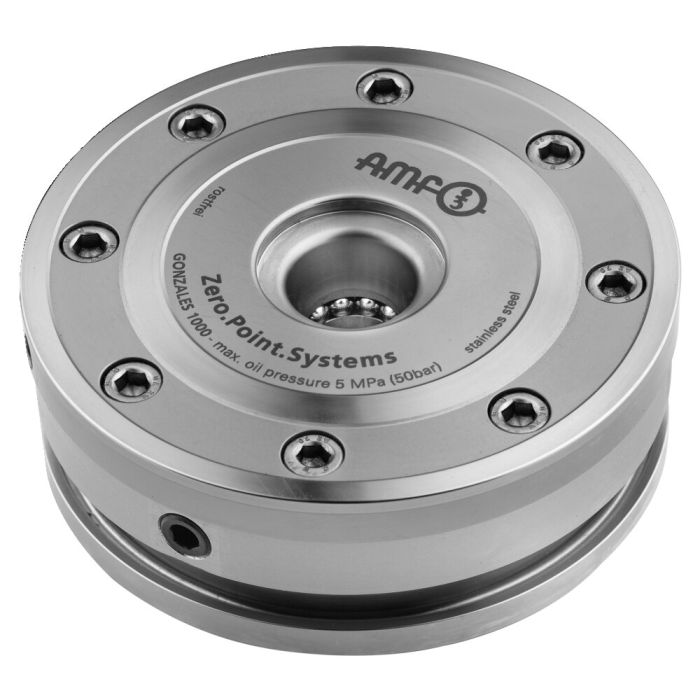

Suface-mounted clamping module “Gonzales”
Application:
Zero-point clamping system in combination with hook clamping flange 63707BG for set-up-time-optimised clamping during cutting and non-cutting machining.
Note:
Use "Gonzales" modules exclusively with "Gonzales" modules in one clamping. When changing systems, observe the following: Unlike Speedy 1000/2000 and DockLock 1000, "Gonzales"modules require an unclamping pressure of min. 50 bar / max. 60 bar. The surface-mounted clamping module is opened hydraulically (1) and mechanically locked through spring force. Subsequent uncoupling of the pressure lines is possible at all times (module is tensioned pressure-free).
The clamping module has one connection: 1x hydr. opening (1).
* Please observe the installation instructions.
On request:
- Installation diagrams
| Order no. | 303388 |
|---|---|
| Product type | Surface-mounting clamping modules |
| Operating mode | Hydraulic |
| Size clamping module | 2000 |
| Holding force [kN] | 55 |
| Pull-in/locking force [kN] | 25 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
- Installation clamping module “Gonzales” Nr. 305219 Hydraulic opening, size 2000, similar installation dimensions as Speedy
