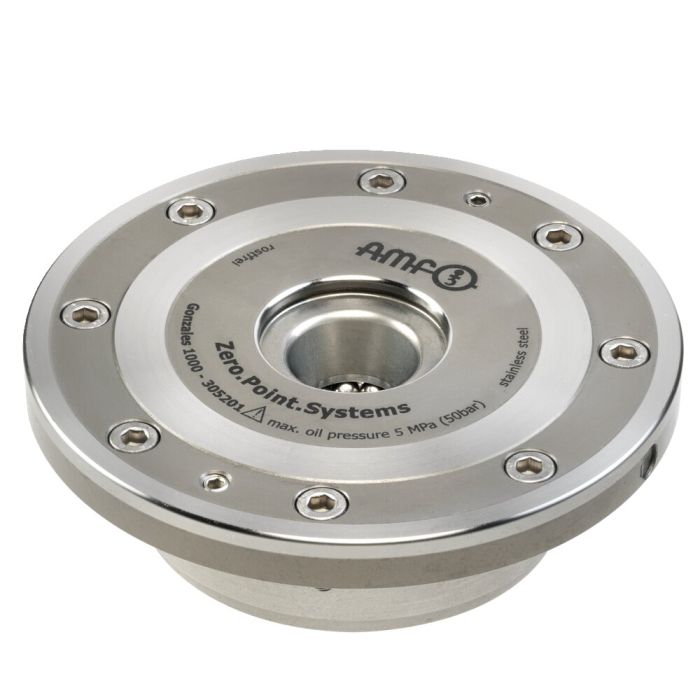

Installation clamping module “Gonzales”
Application:
Zero-point clamping system for set-up-time-optimised clamping during cutting and non-cutting machining.
Note:
Use "Gonzales" modules exclusively with "Gonzales" modules in one clamping. When changing systems, observe the following: Unlike Speedy 1000/2000 and DockLock 1000, "Gonzales"modules require an unclamping pressure of min. 50 bar / max. 60 bar. With recessed installation, observe the cover diameter D 112 mm / 140 mm. The installation clamping module is opened hydraulically (1) and mechanically locked through spring force. Subsequent uncoupling of the pressure lines is possible at all times (module is tensioned pressure-free).
The clamping module has one connection: 1x hydr. opening (1).
* Please observe the installation instructions.
On request:
- Installation diagrams
| Order no. | 305219 |
|---|---|
| Product type | Installation clamping modules |
| Operating mode | Hydraulic |
| Size clamping module | 2000 |
| Holding force [kN] | 55 |
| Pull-in/locking force [kN] | 25 |
