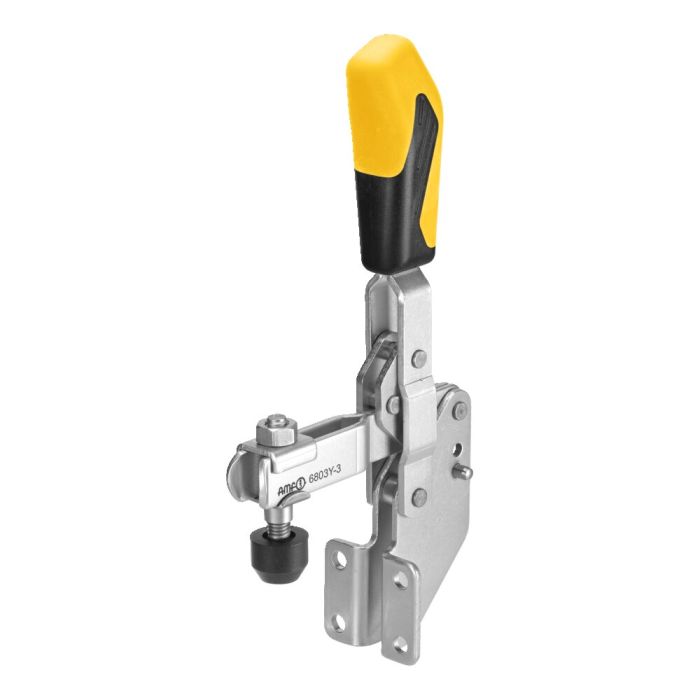

Vertical toggle clamp with yellow handle
With open clamping arm and angle base, size 1, max. clamping force 1,1 kN
Order no.
557024
Also available in "STAINLESS STEEL" version (no. 6803NIY).
* The opening angle can be changed by pressing in a stop pin.
| Order no. | 557024 |
|---|---|
| Product type | Vertical toggle clamp |
| Max. clamping force [kN] | 1.1 |
| Größe Schnellspanner | 1 |
| Material | Steel, galvanized |
| Foot alignment | Angle base |
| Handle color | Yellow |
