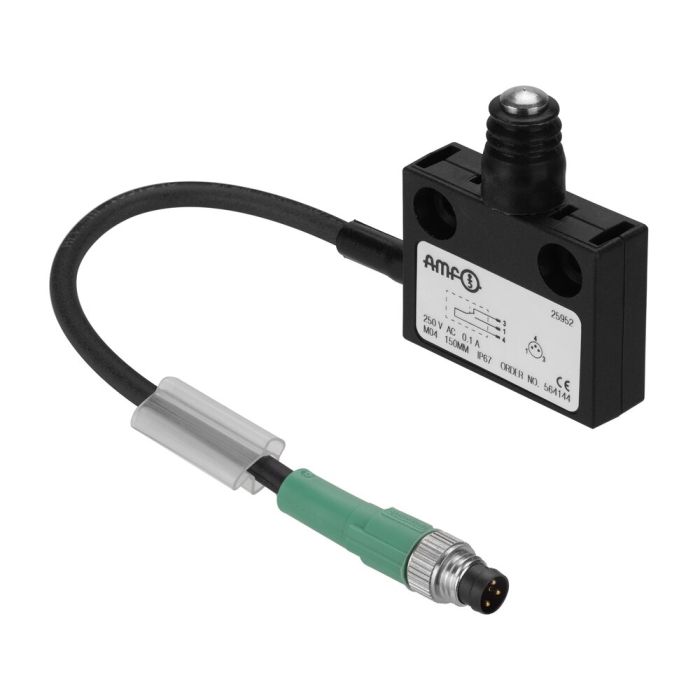

Application: Microswitch for querying different states of a clamping device or component, e.g. support control, position monitoring or clamping control. Due to the through-stroke or long stroke, it is particularly suitable for querying large and bulky components with high tolerances such as castings. The microswitch is connected to the transmitter unit by a cable.
Features: - Housing: Plastic - Function: mechanical switch - The certified switch is water, dust and moisture-resistant - The connector (M8) is pre-assembled ready for connection for the AMF transmitter unit - Designed for ambient temperatures from -20 °C to +80 °C - The stroke is a max. of 5.8 mm with an operating force of 1.6 N.
Note: Different lengths of the connection cable are available on request. For further technical information please request the data sheet.
