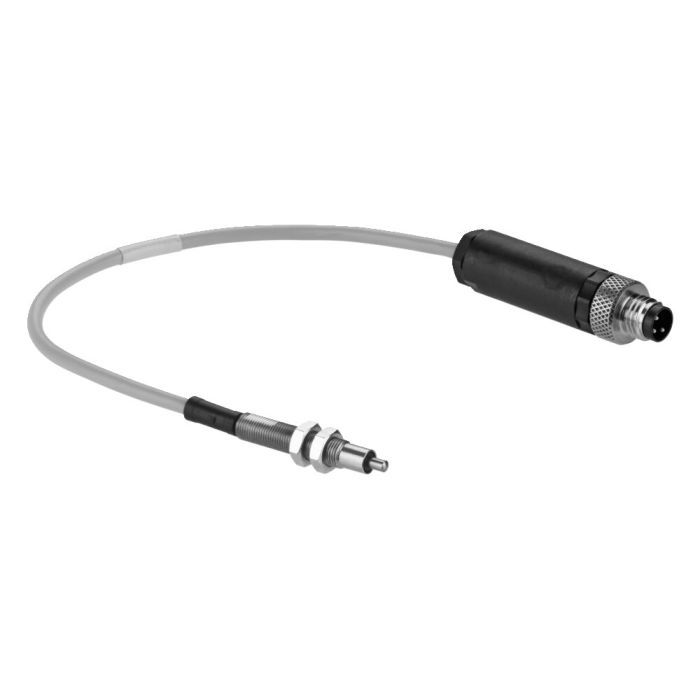

Application: Compact microswitch for querying different states of a clamping device or component, such as support control, position monitoring or clamping control. The microswitch is connected to the transmitter unit by a cable.
Features: - Housing: stainless steel - Function: normally closed with mechanical contact - Installation: M5 x 0.5 - The connector (M8) is pre-assembled ready for connection for the AMF transmitter unit - Designed for ambient temperatures from 0 °C to +80 °C The stroke is a max. of 2.8 mm with an operating force of 1 N.
Note: Two M5 x 0.5 fastening nuts are supplied as standard. Different lengths of the connection cable are available on request. For additional technical information, please request the data sheet.
