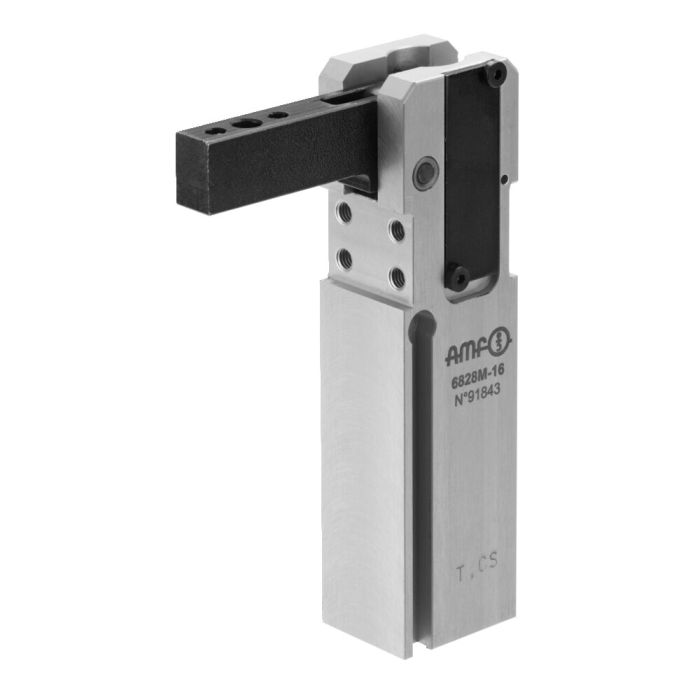

Pneumatic toggle clamp, double-acting
Mini design in block version, size 16, clamping moment at 5 bar 8 Nm, max. holding moment 25 Nm
Order no.
91843
Note:
Suitable proximity switches for end-position monitoring are available using order no. 392241.
0.3 m PUR cable with M8 connector and rotatable knurled nuts.
Switching function: NOC. Output: PNP.
| Order no. | 91843 |
|---|---|
| Product type | Vertical toggle clamp |
| Größe Schnellspanner | 16 |
| Material | Aluminium, red anodised |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
