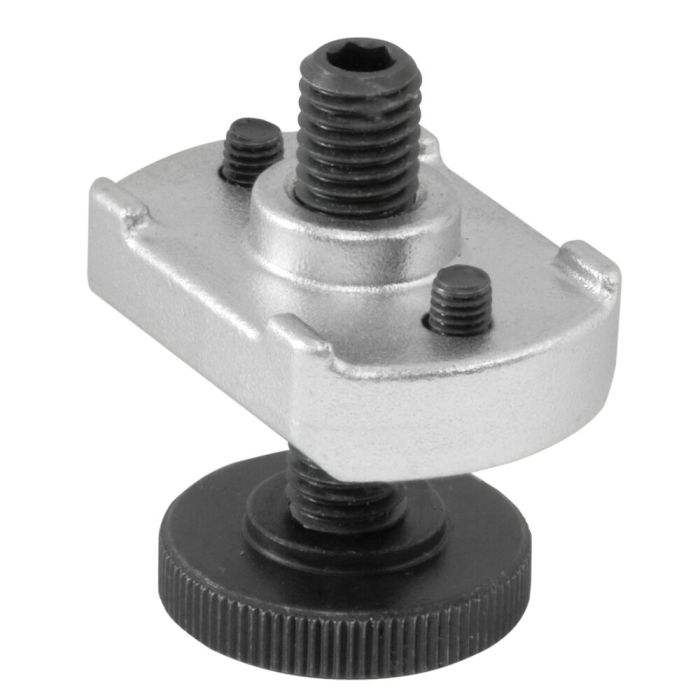

Support extension
Thread M20x69, height 41-77 mm
Order no.
79749
Application:
To increase the clamping height, the support extension is screwed to the counter-bearing of the crocodile.
Advantage:
Continuous adjustment of clamping heights.
| Order no. | 79749 |
|---|---|
| Clamping screw | Without clamping bolt |
| Clamping screw metric [M] | 20 |
| Min. clamping height [mm] | 41 |
| Max. clamping height [mm] | 77 |
