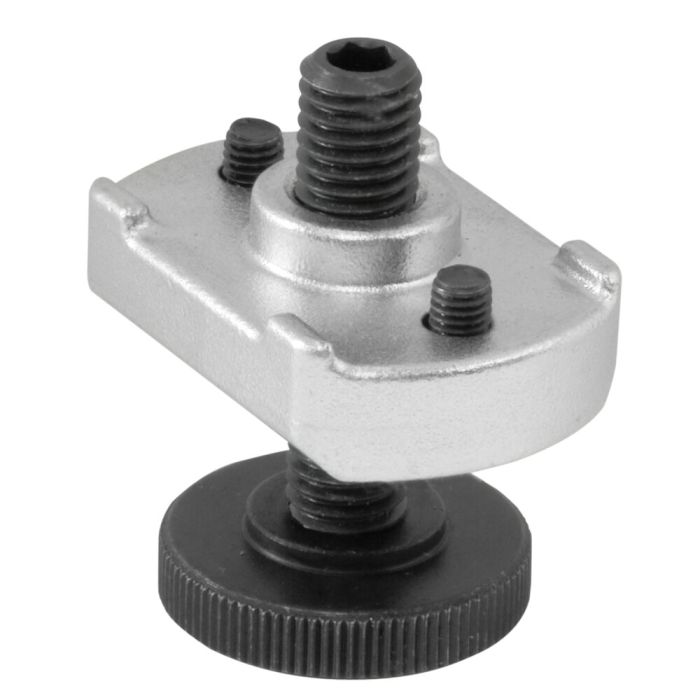

Support extension
Thread M12x49, height 25-53 mm
Order no.
79814
Application:
To increase the clamping height, the support extension is screwed to the counter-bearing of the crocodile.
Advantage:
Continuous adjustment of clamping heights.
| Order no. | 79814 |
|---|---|
| Clamping screw | Without clamping bolt |
| Clamping screw metric [M] | 12 |
| Min. clamping height [mm] | 25 |
| Max. clamping height [mm] | 53 |
