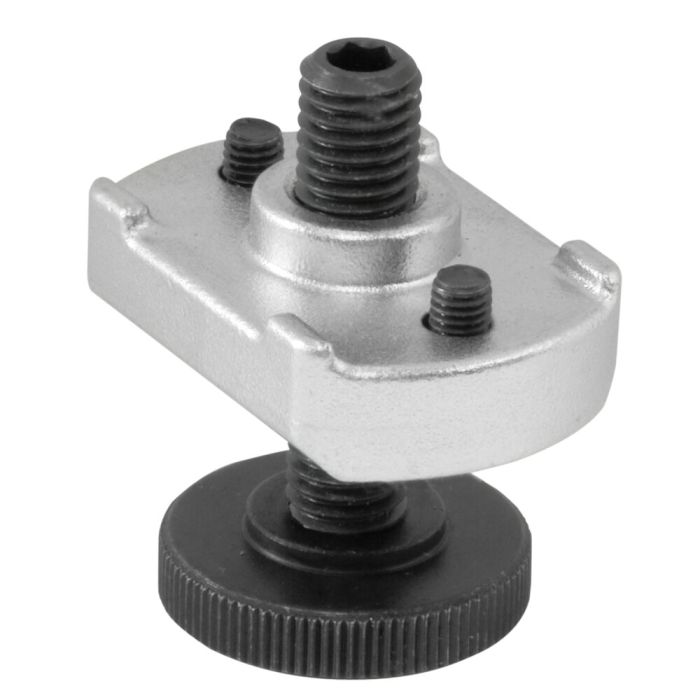

Support extension
Thread M16x90, height 33-93 mm
Order no.
79897
Application:
To increase the clamping height, the support extension is screwed to the counter-bearing of the crocodile.
Advantage:
Continuous adjustment of clamping heights.
| Order no. | 79897 |
|---|---|
| Clamping screw | Without clamping bolt |
| Clamping screw metric [M] | 16 |
| Min. clamping height [mm] | 33 |
| Max. clamping height [mm] | 93 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Crocodile clamp, complete with DIN 787 Nr. 79210 Max. clamping force 55 kN, slot 18 mm, for clamping screw DIN 787 M16x18x200, height 0-80 mm
- Crocodile clamp, complete with DIN 6379 Nr. 375907 Max. clamping force 60 kN, clamping bolt DIN 40079 M20x200, height 0-80 mm
