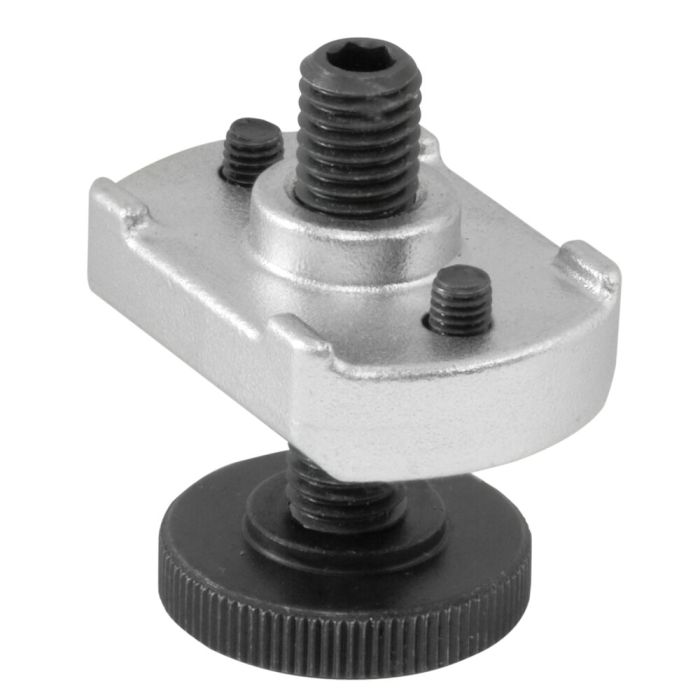

Support extension
Thread M20x109, height 41-116 mm
Order no.
79764
Application:
To increase the clamping height, the support extension is screwed to the counter-bearing of the crocodile.
Advantage:
Continuous adjustment of clamping heights.
| Order no. | 79764 |
|---|---|
| Clamping screw | Without clamping bolt |
| Clamping screw metric [M] | 20 |
| Min. clamping height [mm] | 41 |
| Max. clamping height [mm] | 116 |
