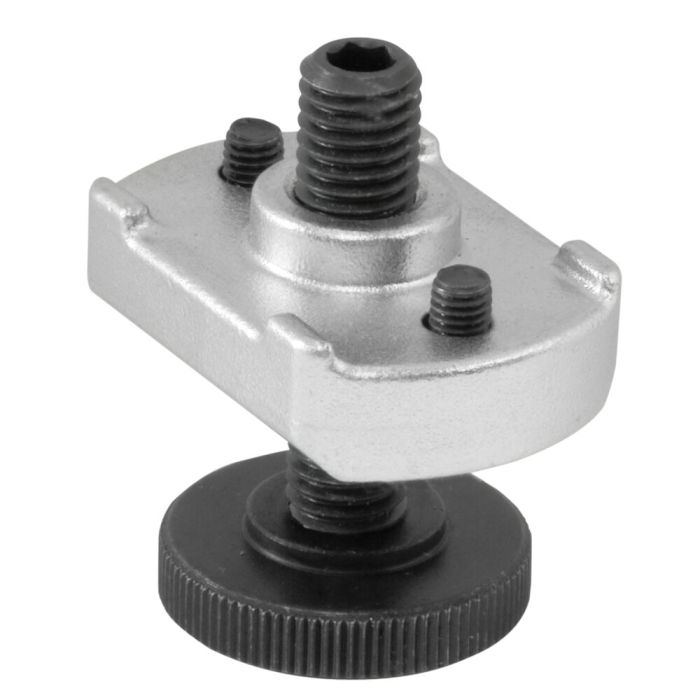

Support extension
Thread M16x55, height 33-61 mm
Order no.
79871
Application:
To increase the clamping height, the support extension is screwed to the counter-bearing of the crocodile.
Advantage:
Continuous adjustment of clamping heights.
| Order no. | 79871 |
|---|---|
| Clamping screw | Without clamping bolt |
| Clamping screw metric [M] | 16 |
