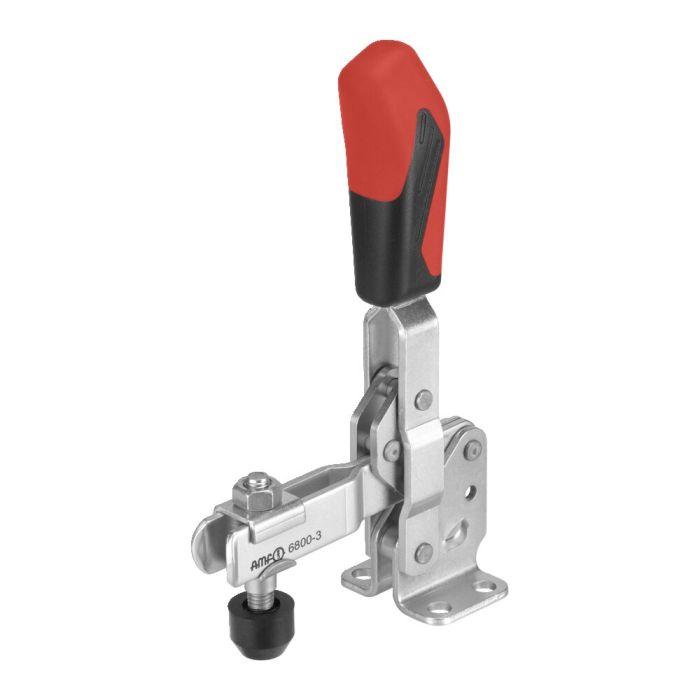

Vertical toggle clamp with red handle
With open clamping arm and horizontal base, size 5, max. clamping force 5 kN
Order no.
90050
Also available in "STAINLESS STEEL" version (no. 6800NI) and in matte-black version (no. 6800B)!
* The opening angle can be changed by pressing in a stop pin.
| Order no. | 90050 |
|---|---|
| Product type | Vertical toggle clamp |
| Max. clamping force [kN] | 5 |
| Größe Schnellspanner | 5 |
| Material | Steel, galvanized |
| Foot alignment | Horizontal |
| Handle color | Red |
