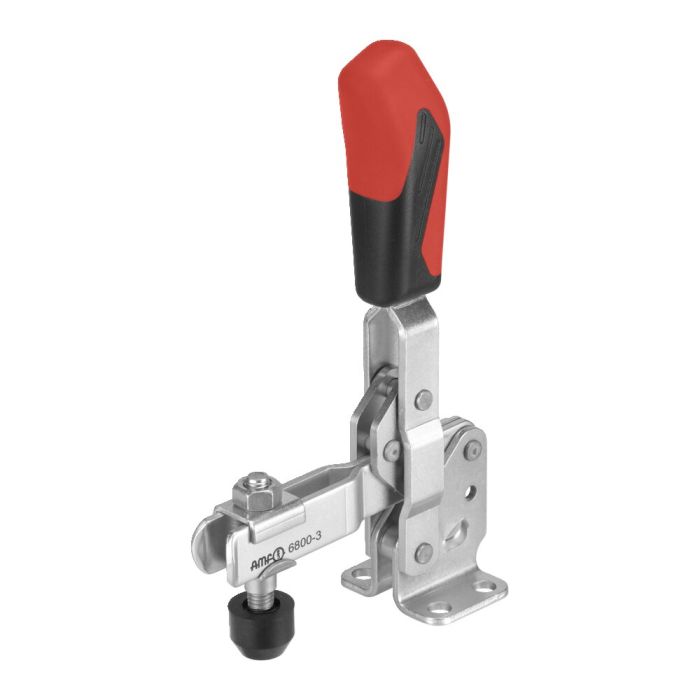

Vertical toggle clamp with red handle
With open clamping arm and horizontal base, size 4, max. clamping force 3 kN
Order no.
90043
Also available in "STAINLESS STEEL" version (no. 6800NI) and in matte-black version (no. 6800B)!
* The opening angle can be changed by pressing in a stop pin.
| Order no. | 90043 |
|---|---|
| Product type | Vertical toggle clamp |
| Max. clamping force [kN] | 3 |
| Größe Schnellspanner | 4 |
| Material | Steel, galvanized |
| Foot alignment | Horizontal |
| Handle color | Red |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
