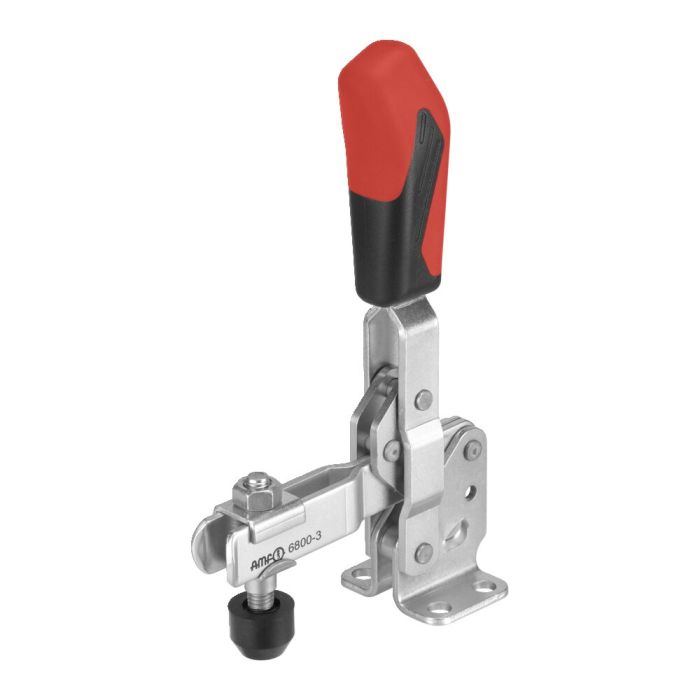

Vertical toggle clamp with red handle
With open clamping arm and horizontal base, size 2, max. clamping force 1,2 kN
Order no.
90027
Also available in "STAINLESS STEEL" version (no. 6800NI) and in matte-black version (no. 6800B)!
* The opening angle can be changed by pressing in a stop pin.
| Order no. | 90027 |
|---|---|
| Product type | Vertical toggle clamp |
| Max. clamping force [kN] | 1.2 |
| Größe Schnellspanner | 2 |
| Material | Steel, galvanized |
| Foot alignment | Horizontal |
| Handle color | Red |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
