12-point clamping cube
Hydraulic unlocking, size KH10.2
Order no.
427641
Design:

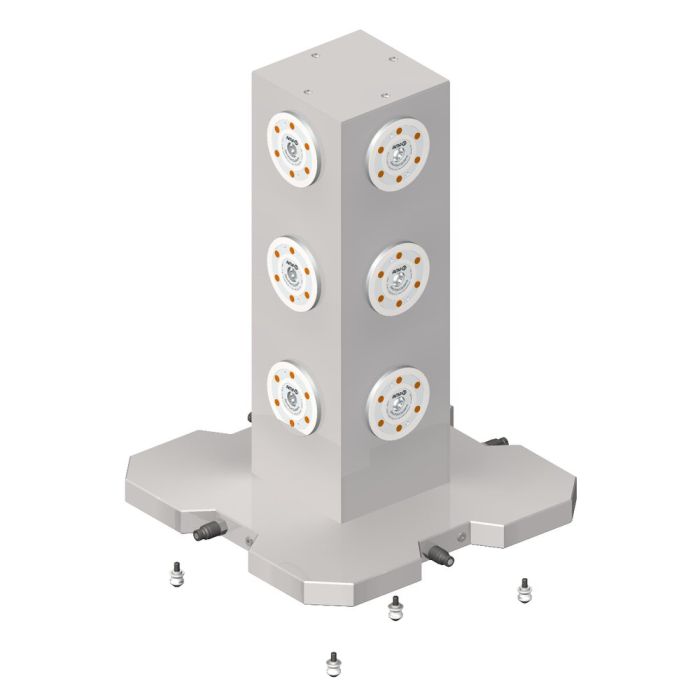

Hydraulic clamping cube for set-up-time-optimised clamping on clamping station 6204S6HA-008. Fastening is with pull-studs installed underneath.
The pitch spacing of the clamping modules is 200 mm. The quick-coupling plug is pre-mounted, and the integrated blow-out function can be individually connected.
Note:
* Please observe the installation instructions.
| Order no. | 427641 |
|---|---|
| Product type | Clamping stations |
| Operating mode | Hydraulic |
| Size clamping module | 10 |
| Holding force [kN] | 25 |
| Pull-in/locking force [kN] | 10 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Pull-stud size 10 for M10 engagement screw Nr. 554936 For clamping modules size 10, zero point pull-stud
- Hydraulic tube Nr. 558008 For reduced space conditions or small bending radius, max. operating pressure dyn. at +50°C 375 bar
Similar products
- Single clamping bracket Nr. 428060 Hydraulic unlocking, for clamping on KH10.2 clamping stations, height 150 mm
- 2-point clamping bracket Nr. 427906 Hydraulic unlocking, for clamping on KH10.2 clamping stations, height 220 mm
- 2-point clamping bracket Nr. 427765 Hydraulic unlocking, for clamping on KH10.2 clamping stations, height 110 mm
