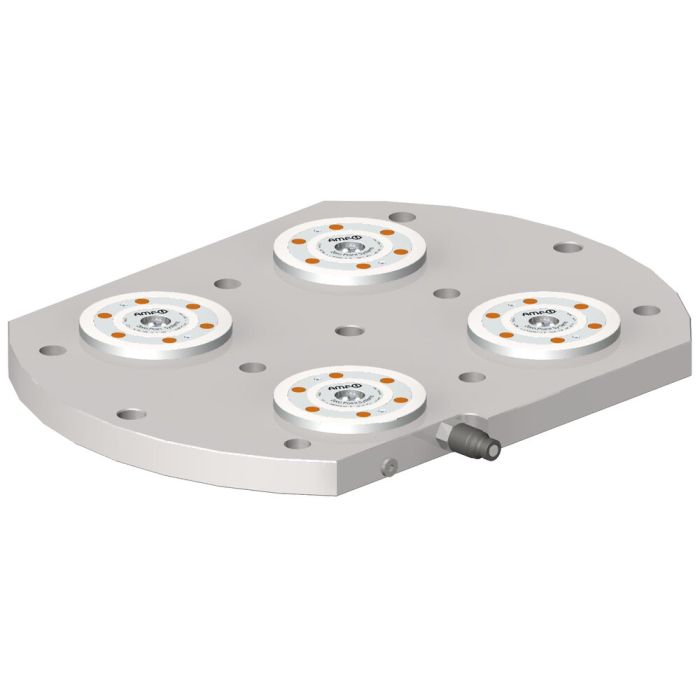

4-point clamping station
Hydraulic unlocking, size KH10.2
Order no.
427492
Design:
Hydraulic clamping station for optimised clamping times on machine tables with distance between slots of 63 mm. Clamping is with M12 socket head screws. At least two fitting holes are attached for alignment.
The insertion dimension of the clamping modules is 200 mm. The quick coupling plug is pre-mounted, and the integrated blow-out function can be individually connected.
Application:
e.g. for DMG / DMU 50 EVO
Note:
* Please observe the installation instructions.
Advantage:
Low overall height of only 36 mm.
| Order no. | 427492 |
|---|---|
| Product type | Clamping stations |
| Operating mode | Hydraulic |
| Size clamping module | 10 |
| Holding force [kN] | 25 |
| Pull-in/locking force [kN] | 10 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Pull-stud size 10 for M10 engagement screw Nr. 554936 For clamping modules size 10, zero point pull-stud
- Cover caps for clamping pallets Nr. 430165 For cylinder and positioning boreholes in clamping stations, size M12
Similar products
- 2-point clamping bracket Nr. 427682 Hydraulic unlocking, for clamping on KH10.2 clamping stations, height 26 mm
