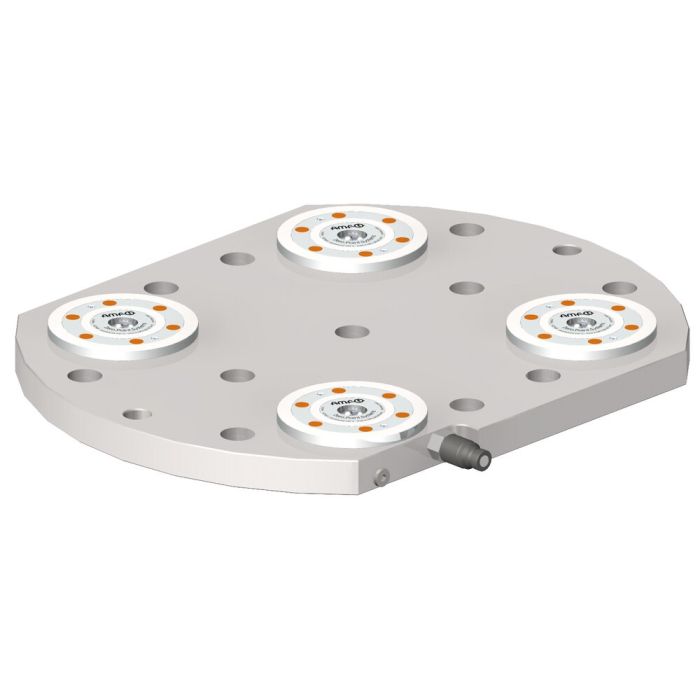

4-point clamping station
Hydraulic unlocking, size KH10.2
Order no.
427518
Design:
Hydraulic clamping station for optimised clamping times on machine tables with distance between slots of 80 mm. Clamping is with M16 socket head screws. At least two fitting holes are attached for alignment.
The insertion dimension of the clamping modules is 240 mm. The quick coupling plug is pre-mounted, and the integrated blow-out function can be individually connected.
Application:
e.g. for Mazak Variaxis 500
Note:
* Please observe the installation instructions.
Advantage:
Low overall height of only 36 mm.
| Order no. | 427518 |
|---|---|
| Product type | Clamping stations |
| Operating mode | Hydraulic |
| Size clamping module | 10 |
| Holding force [kN] | 25 |
| Pull-in/locking force [kN] | 10 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
